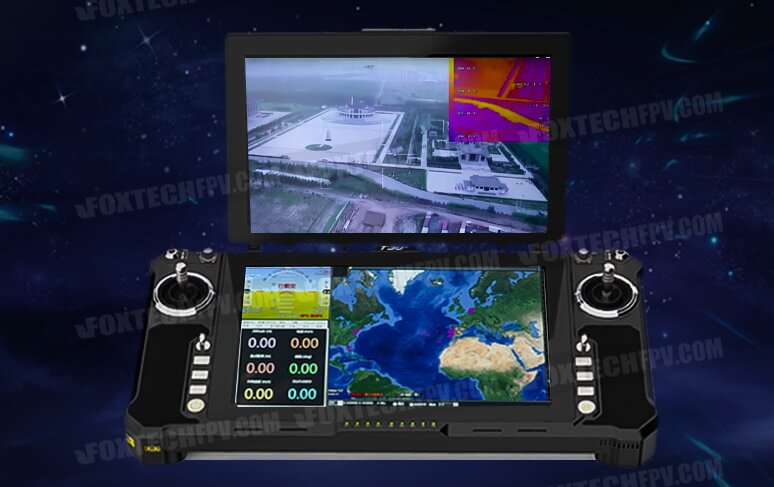

Foxtech T30S Duel Screen GCS

T30 series is a portable and professional ground control station(GCS) with 10.1 inch HD and high-brightnesstouch screen display, integrating data link, video link, radio controller and PC system all in one. Many functions are achieved in T30 series, such as drone control, gimbal control, real-time flight status feedback, data and video transmission, route planning, etc. The industrial-grade computer and military-grade transmission links not only ensure the security and stability of the drones, but also are simple to operate and easy to carry.

T30 series includes two versions: single-screen T30 GCS, and dual-screen T30S GCS, which features light weight and compact size for use and transportation. The body is made of aircraft aluminum.Max. display resolution of HD screen is 1920*1200, and max. brightness can reach up to 800CD. T30 series has 23 channels for operation, realizing a high degree of flight control and versatility. And dual SBUS output is able to control the drone and payload. There are two types of transmitter to choose for different user needs: V30 data and video transmitter and R20 data transmitter.V30 supports frequencies of 800MHz/1.4GHz, and the frequency of R20 is 900MHz. The communication range can reach up to 15km.

Besides, the GCS has a built-in 3S 10200mAh Lipo battery which could provide 3 hours operation time with full capacity. The external 12V battery is also available. This long endurance is enough for most of inspection jobs.

The T30 series GCS is a portable, easy-to-use tool. Our complete GCS solutions are compatible with most of Foxtech drones, such as RHEA 160，GAIA 160S Hexacopter，Great Shark 330 VTOL，BABY SHARK 260 VTOL , which can be controlled manually or automatically by T30 series. Equipped with EH series cameras with Ethernet video output, like EH30 Series Starlight Camera, EH640TM Series IR Thermal Camera, EH640L IR Laser Night Vision Camera, EH2000 20.1 Mega Pixels Gimbal Camera, it is a great combo for powerline inspection, bridge inspection, wind turbine inspection, search and rescue, police patrol, etc.

Note: buy T30&V30 or T30S&V30 combo, get rubber ducky antenna for free!

Specifications:

T30 Series GCS

Dimension: 364mm(L)*190mm(W)*40mm(H)

Weight: 1900g(T30), 3100g(T30S)

Channel: 23

Control range: 15KM

Output power: Max. 25 dBm

Remote control latency: 40ms

Battery capacity: 12V/10200mAh, external battery is available

Endurance: 3H with full capacity

Display screen: 10.1 inch+touch screen+800cd/sunlight readable screen

Resolution: 1920*1200

Processor: Intel i7 5th generation 5500U

Memory: 8GB DDR3L

Storage capacity: 128GB

Operation system: Windows 10

Three proofings: IP53

Network type: 4G/WIFI(optional)

Interface: USB3.0, 4G card slot, LAN, Audio, Amplifier, HDMI

Operating temperature: -10~+60℃

V30 Transmitter

Dimension: 91mm*57mm*20mm

Weight: 120g(exclude antennas)

Frequency:  800MHZ:806-826MHZ

                    1.4GHZ:1427.9-1447.9MHZ

Wireless modulation mode: OFDM

Video input: LAN port、HDMI(optional)、CVBS

Wireless signal bandwidth: 10MHz/20MHz

Coding mode: H.265/H.264

Power supply voltage: 7.4~12V

Data output interface: UART *1/SBUS *2

HDMI interface type: Type A

Operation current: 300MA（12V power input）

Power: 0.1-1W

Antenna: 2-4dB rubber ducky antenna

Operating temperature: -10~+50℃

R20 Data Transmitter

Dimension: 53mm*40mm*14mm

Weight: 43g(exclude antennas)

Frequency: 900MHZ: 902-920MHZ

Data output interface: TTL*1/SBUS*2

Transmission Range: 10km

Power supply voltage: 7.4~12V

Operation current: 100MA（12V power input）

Power: 0.1-1W

Antenna: 2dB rubber ducky antenna

Operating temperature: -10~+50℃

Your Purchase Includes:

T30&V30:

1x T30 Ground Station

1x V30 Transmitter

2x Antenna for T30

2x Antenna for V30 Transmitter

1x Charger for Ground Station

1x Power Supply Cable for V30

3x 3PIN Cable

1x HDMI A to Micro Cable/LAN to GH4pin Cable(optional)

1x Sling

T30&R20:

1x T30 Ground Station

1x R20 Transmitter

1x Sucker Antenna for T30

1x Antenna for R20 Transmitter

1x Charger for Ground Station

1x Cable for Parameter Setting

1x Power Supply Cable for R20

1x Sling

 T30:

1x T30 Ground Station

1x Charger for Ground Station

2x Aviation Connector for TTL and SBUS

1x Sling

T30S&V30:

1x T30S Ground Station

1x V30 Transmitter

2x Antenna for T30S

2x Antenna for V30 Transmitter

1x Charger for Ground Station

1x Power Supply Cable for Transmitter

3x 3PIN Cable

1x HDMI A to Micro Cable/LAN to GH4pin Cable(optional)

1x Sling

T30S&R20:

1x T30S Ground Station

1x R20 Transmitter

1x Sucker Antenna for T30S

1x Antenna for R20 Transmitter

1x Charger for Ground Station

1x 90°USB Cable

1x HDMI Cable

1x Cable for Parameter Setting

1x Power Supply Cable for R20

3x 3PIN Cable

1x Sling

T30S:

1x T30S Ground Station

1x Charger for Ground Station

2x Aviation Connector for TTL and SBUS

1x 90°USB Cable

1x HDMI Cable

 1x Sling
